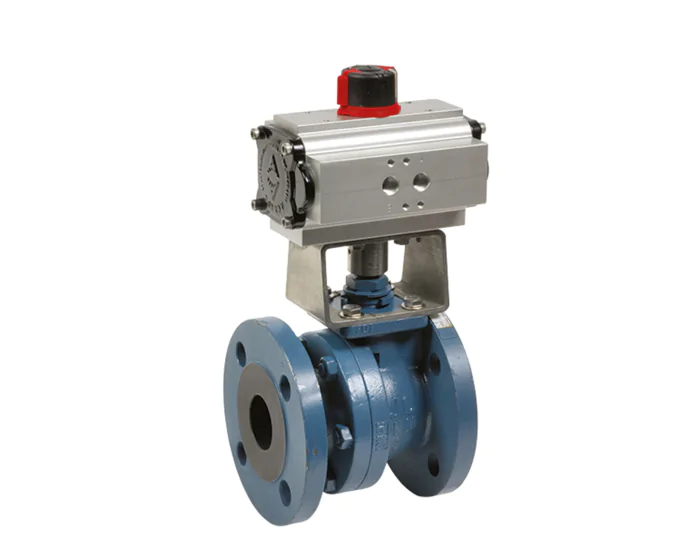

JC valves carbon steel ball valve 540AICG + ADA/ASR pneumatic actuator
€1,155.21
(excl. btw)
The 540AICG series JC VALVES ball valve has an A216WCB steel body, a CF8M carbon steel ball and PTFE + 20% graphite seats. It is actuated with pneumatic actuation ACTREG ADA/ASR. Flanged RF PN40, EN558 series 1.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Operating angle (°)
90
Shaft/stem matérial
Stainless steel 316
Adjustable limit screws
Yes
ATEX compatible
Yes
DN
DN65 - 2''1/2
Face to Face (mm)
170.0
Body material
Carbon steel A216 WCB (1.0619)
ATEX protection mode
Ex c
Number of ways
2
Bore
Full
Packing gland
Graphite
PS (bar)
16
Connections
Flanged PN16
Seats
PTFE-Graphite
Ball material
Stainless steel 316
Surface temperature
TX
Pneumatic actuator type
Double acting
Ball valve design
2-piece body
Warranty period
1 year
CE
Risk category I
Range
JC Valves
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
2480
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Double acting Flanged PN16
516AICG065015103
S1002465
€1,155.21
(excl. btw)
add to cart
2481
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Spring return Flanged PN16
516AICG065016105
S1002466
€1,241.14
(excl. btw)
add to cart
2482
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return Flanged PN16
516AICG080016106
S1002467
€1,642.11
(excl. btw)
add to cart
2483
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Spring return Flanged PN16
516AICG125016107
S1002468
€4,318.99
(excl. btw)
add to cart
2484
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return Flanged PN16
516AICG150016108
S1002469
€8,637.03
(excl. btw)
add to cart
2485
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting Flanged PN40
540AICG015015100
S1002470
€522.81
(excl. btw)
add to cart
2486
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return Flanged PN40
540AICG015016101
S1002471
€591.03
(excl. btw)
add to cart
2487
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting Flanged PN40
540AICG020015100
S1002472
€568.29
(excl. btw)
add to cart
2488
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting Flanged PN40
540AICG025015101
S1002473
€613.74
(excl. btw)
add to cart
2489
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return Flanged PN40
540AICG025016102
S1002474
€649.21
(excl. btw)
add to cart
2490
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Double acting Flanged PN40
540AICG032015101
S1002475
€795.60
(excl. btw)
add to cart
2491
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Spring return Flanged PN40
540AICG032016102
S1002476
€863.80
(excl. btw)
add to cart
2492
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40
540AICG040016103
S1002477
€886.51
(excl. btw)
add to cart
2493
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting Flanged PN40
540AICG050015102
S1002478
€909.26
(excl. btw)
add to cart
